UL2464 Test Equipment Communication Cable — Shielded D-Sub Welded Terminal Harness

Product Overview

Description

The UL2464 Testing & Production Equipment Communication Cable is the workhorse data cable for any factory floor, test lab, or production line that needs reliable multi-conductor signal links between cabinets, instruments, and controllers. UL2464 is the UL-recognized internal-wiring style — tinned copper conductors, PVC insulation, gray PVC outer jacket, 300V at 80 °C, VW-1 flame retardant. The shielded variants add an aluminum-foil + tinned-copper braid shield with a drain wire, giving the cable the EMI immunity needed for clean signaling in noisy industrial environments full of motor drives, switching power supplies, and RF sources.

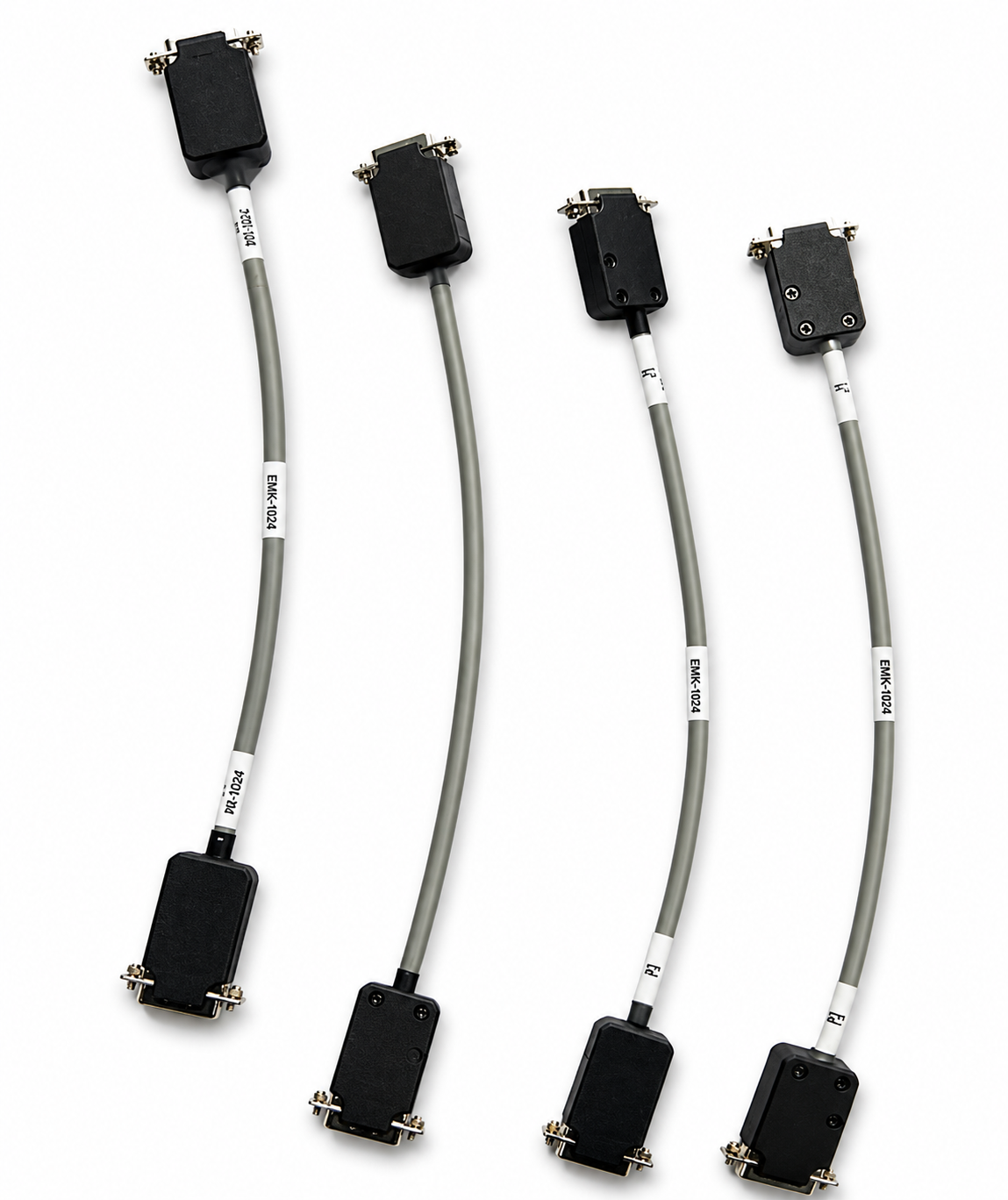

Two builds ship as standard: 5×24AWG (5×0.3 mm²) and 8×24AWG (8×0.3 mm²), both shielded and gray-jacketed. Beyond standard, we build 2 to 25 conductors in 28AWG, 26AWG, 24AWG, 22AWG, and 20AWG gauges. Termination is the industry-favorite D-Sub (DB) family — DB9, DB15, DB25, DB37, DB50, and high-density variants HD15 / HD26 / HD44 / HD62 — in both male and female with gold-plated contacts, copper welded (solder-cup) joints for low contact resistance, metal shells with EMI-grounding teeth, and thumbscrew or jackscrew locking. P1 / J100 cable identification labels are applied per drawing for traceability.

Every finished assembly passes 100% continuity test, insulation resistance (≥ 100 MΩ at 500 VDC), pin-to-shell isolation, and a 500 VAC / 60-second hi-pot withstand check. Shielding continuity is verified end-to-end with a milliohm meter. Soldered D-Sub joints are pull-tested per IPC/WHMA-A-620. Materials are RoHS and REACH compliant. Custom lengths from 100 mm to 30 m, custom pin assignments (straight-through, crossover, custom map), and overmolded strain-relief boots are all available. SGS pre-shipment inspection on request — MOQ from 10 pcs, sample lead time 7–10 days.

Key Features

Why This Harness

01

UL2464 Recognized Wire

Industry-standard internal-wiring style — 300V / 80 °C / VW-1 flame retardant, tinned copper, PVC insulation & jacket.

02

Foil + Braid EMI Shielding

Aluminum-foil wrap plus tinned-copper braid plus drain wire — keeps signal integrity high in noisy factory environments.

03

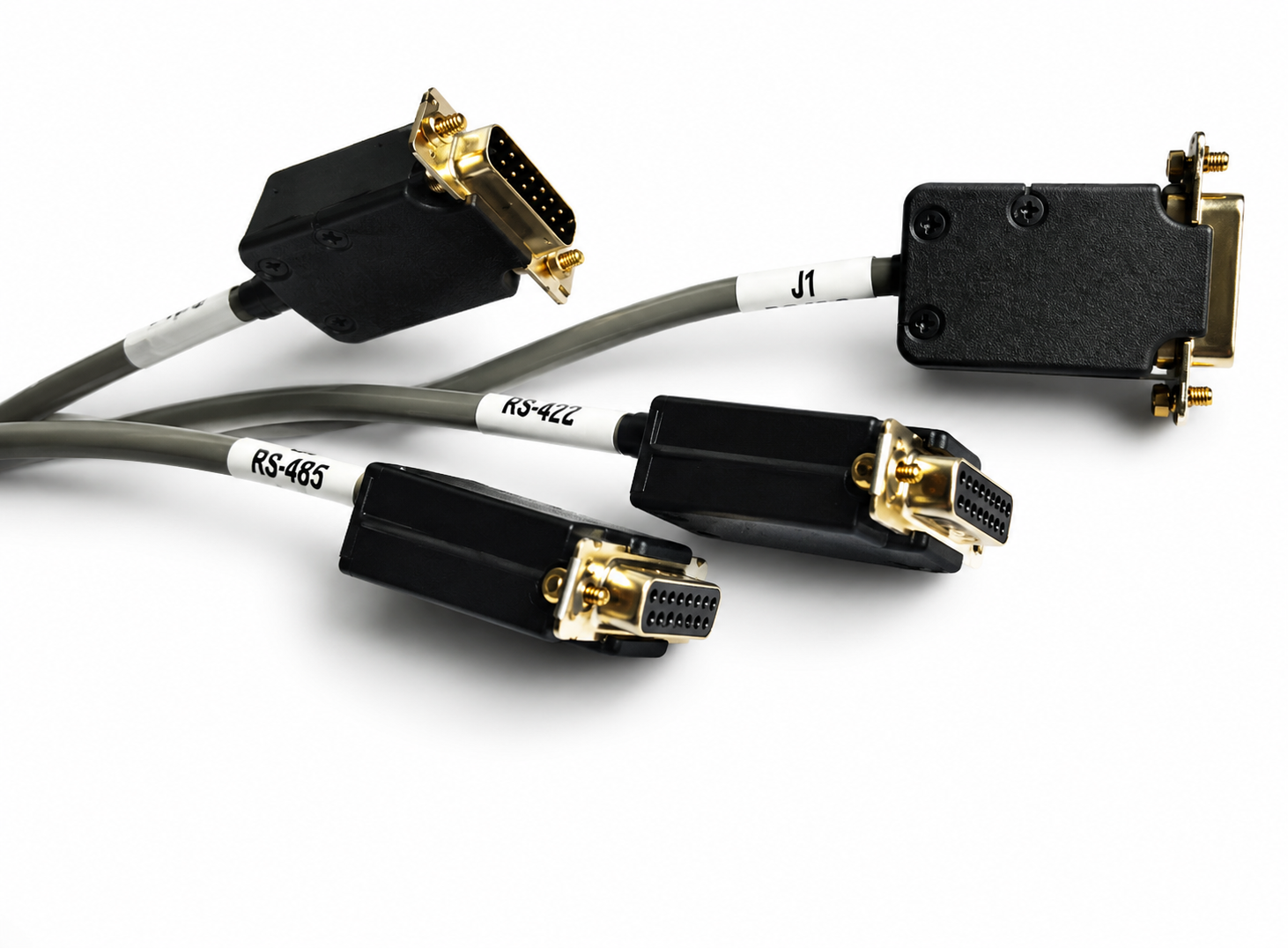

Gold-Plated D-Sub Contacts

DB9 / DB15 / DB25 / DB37 / DB50 male and female. Gold-plated for low contact resistance and corrosion-free signaling.

04

Copper Welded Terminals

Solder-cup termination on every contact — gas-tight, low-resistance, mechanically robust. IPC/WHMA-A-620 pull-tested.

05

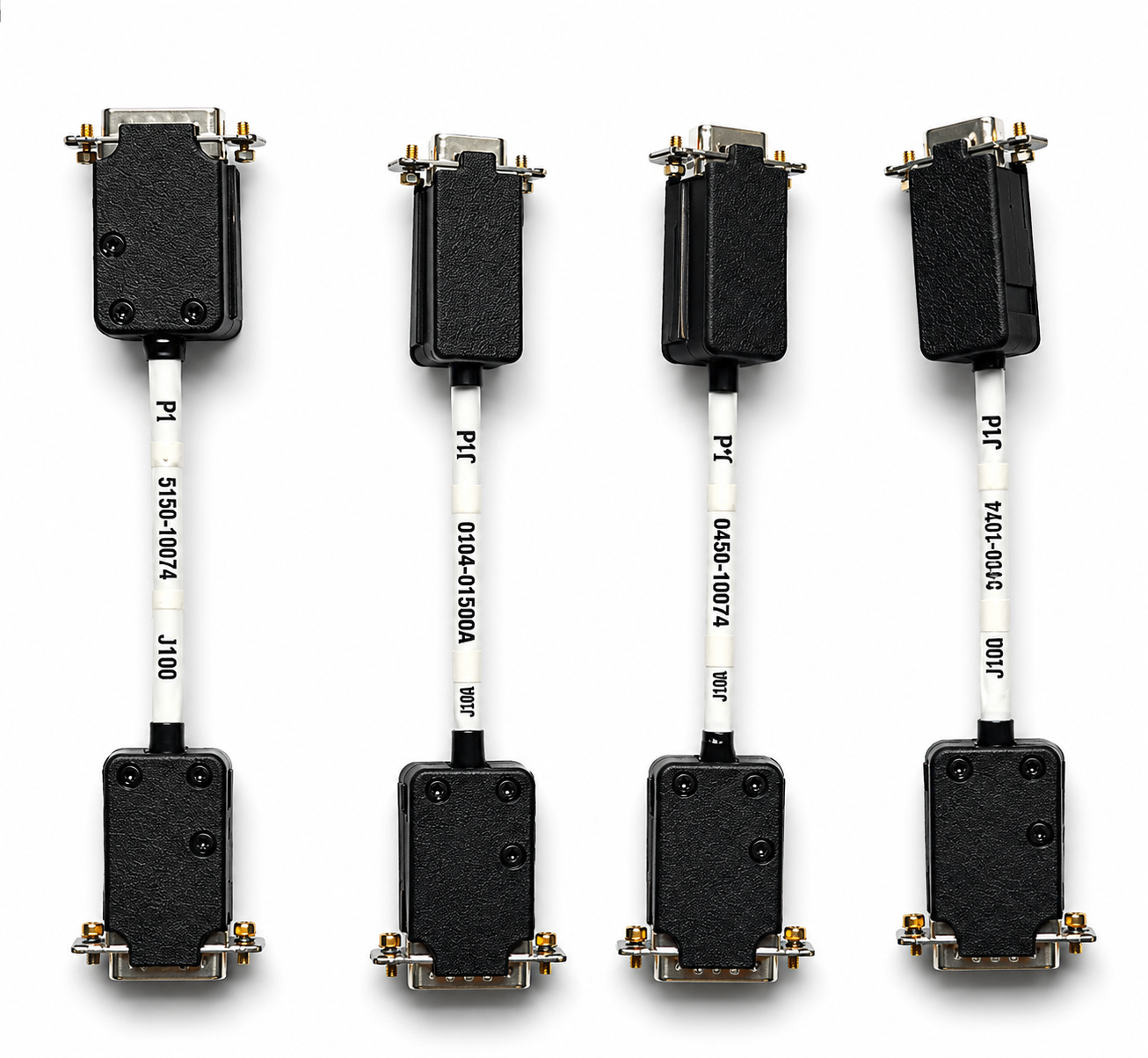

P1 / J100 Cable Labels

Heat-shrink ID labels at each connector — supports drawing-based traceability and quick field service identification.

06

2–25 Cores · MOQ 10 pcs

Custom conductor counts from 2 to 25, gauges from 28 to 20 AWG, lengths 100 mm to 30 m. Sample in 7–10 days.

Technical Data

Specifications

Product Code	WC-01 · WHW-UL2464-DSUB-HARNESS
Product Series	UL2464 Communication Cable — Testing & Production Equipment
Application Field	Machine vision, PLC, test fixtures, lab instruments, production lines
Cable Style	UL2464 (UL-recognized internal wiring)
Voltage Rating	300 V (UL2464 spec)
Temperature Rating	80 °C continuous
Flame Retardancy	VW-1 (vertical wire flame test)
Conductor	Tinned copper, stranded
Insulation	PVC — multi-color (UL standard color code)
Outer Jacket	PVC — gray (standard) · black on request
Shielding	Aluminum-foil + tinned-copper braid + drain wire
Standard Build A	5×24AWG / 5×0.3 mm² / shielded / gray
Standard Build B	8×24AWG / 8×0.3 mm² / shielded / gray
Custom Conductor Counts	2 / 3 / 4 / 5 / 6 / 7 / 8 / 10 / 12 / 16 / 20 / 25 cores
Custom Gauges	28 / 26 / 24 / 22 / 20 AWG
D-Sub Pin Counts	DB9 / DB15 / DB25 / DB37 / DB50 + HD15 / HD26 / HD44 / HD62
D-Sub Gender	Male / Female / Mixed pair
D-Sub Plating	Gold-plated contacts (standard) · nickel option
D-Sub Shell	Black plastic with metal EMI teeth · thumbscrew / jackscrew lock
Termination Method	Copper welded (solder cup) — IPC/WHMA-A-620 pull-tested
Cable Labels	P1 / J100 heat-shrink IDs per drawing
Standard Part Numbers	0150-10074 and similar OEM service part references
Withstand Voltage	500 VAC / 60 s hi-pot
Insulation Resistance	≥ 100 MΩ at 500 VDC
Custom Length	100 mm to 30 m
Certification	UL2464 recognized · RoHS · REACH
Quality System	IATF 16949 · ISO 9001 · IPC/WHMA-A-620
Packing Dimensions	30 × 20 × 15 cm · ~1 g/cm length
MOQ	10 pcs (prototype-friendly)
Sample Lead Time	7–10 days
Mass Production Lead Time	15–25 days after artwork approval

FAQ

Frequently Asked Questions

What is UL2464 and why is it the right cable here?

UL2464 is a UL-recognized internal-wiring style for multi-conductor cables used inside electronic equipment — computers, controllers, instruments, test stations. It specifies tinned copper conductors with PVC insulation and a PVC outer jacket rated 300V at 80 °C, with VW-1 flame retardancy. The shielded version adds aluminum-foil + tinned-copper braid for EMI immunity. This is the workhorse cable for board-to-board, chassis-to-chassis, and equipment-to-equipment communication runs that need clean signal integrity in noisy industrial environments.

What conductor counts and cross-sections are available?

Standard builds are 5×24AWG (5×0.3 mm²) and 8×24AWG (8×0.3 mm²), both shielded and gray-jacketed. Beyond standard we build 2, 3, 4, 5, 6, 7, 8, 10, 12, 16, 20, 25-core variants in 28AWG, 26AWG, 24AWG, 22AWG, and 20AWG. Multi-color insulation per UL convention; shielded foil + braid available on every variant.

Which D-Sub connector pin counts do you offer?

All standard D-Sub sizes — DB9 (9-pin), DB15 (15-pin), DB25 (25-pin), DB37 (37-pin), DB50 (50-pin), and high-density variants (HD15, HD26, HD44, HD62) — in both male and female with gold-plated contacts. Termination is copper welded (solder cup) for low-resistance signal integrity. Metal shells with EMI-grounding teeth and thumbscrew or jackscrew locks are standard. P1/J100 cable labels per drawing.

Which equipment is this cable designed for?

The cable fits machine vision systems (camera-to-controller), PLC racks and remote I/O, test fixtures and production-line instruments, oscilloscopes and signal generators, lab instruments (DAQ, spectrum analyzers, programmable power supplies), CNC controllers, and serial/parallel data buses (RS-232, RS-485, parallel ports). The flat gray jacket with D-Sub ends is the de-facto industry standard for industrial communication links.

What testing and certification do you provide?

UL2464 recognized wire (UL file E reference on request). Each finished assembly passes 100% continuity test, insulation resistance (≥ 100 MΩ at 500 VDC), pin-to-shell isolation, and a hi-pot withstand at 500 VAC for 60 seconds. Soldered D-Sub connections are pull-tested per IPC/WHMA-A-620. Shielding continuity verified end-to-end. RoHS and REACH compliant. SGS pre-shipment inspection on request.

Applications

Where It's Installed

01

Machine vision systems

02

PLC racks & remote I/O

03

Test fixtures & jigs

04

Production-line instruments

05

Lab data acquisition

06

CNC controllers

07

RS-232 / RS-485 buses

08
