Financial Equipment Wiring Harness — Magnetic 12-Pin Connector & Security Control Cable

Product Overview

Description

The Financial Equipment Wiring Harness is a custom cable assembly engineered for the demanding electrical environment inside ATMs, POS terminals, currency counters, ticket vending machines, banknote validators, and self-service kiosks. It pairs precision sensor signaling with security-control integrated transmission in a single harness family — ferrite snap-on cores keep RF emissions inside FCC Part 15 and CE EMC limits while ensuring nearby magnetic-stripe and contactless readers operate cleanly. Pure copper cold-press terminals and PVC V0 flame-retardant insulation give the harness the long service life that fleet operators expect from cash-handling hardware.

Four cable types ship from this product family. Signal transmission cables use shielded RJ45 / Ethernet-style construction for terminal-to-host and inter-module data links. Motor drive harnesses integrate a 12-pin connector with ferrite EMI suppression core and multi-color insulated wires — the de-facto standard interface for cash-dispenser, currency-counter, and ticket-printer motors. Sensor cables connect magnetic, inductive, and proximity probes for note detection, drawer interlocks, and security trigger inputs. Coaxial RF cables handle high-frequency data and contactless reader antennas.

Production runs on a fully automatic cold-press line with each terminal 100% pull-tested at rated load and a 1500 VAC / 1-minute high-voltage withstand check before packing. The harness is UL recognized with V0 flame-retardant insulation (UL 94 V0), RoHS and REACH compliant — eco-friendly halogen-free options available for EU and APAC eco-design procurement. Pin counts, wire colors, connector flavor, and overmolded boots are all built to your drawing or sample — MOQ from 10 pieces, sample lead time 7–10 days.

Key Features

Why This Harness

01

12-Pin Standard Connector

Industry-standard 12-pin interface for cash-handling motors and sensor modules — unified pin-out across multiple machine models.

02

Ferrite EMI Suppression

Snap-on magnetic core kills high-frequency common-mode noise — keeps ATM emissions compliant with FCC Part 15 and CE EMC.

03

Shielded RJ45 Communication

Foil + braid shielded RJ45 for terminal-to-host and inter-module data links — robust against the noisy power environment of cash machines.

04

Magnetic & Inductive Sensors

Note-detection, drawer interlock, and security trigger sensor cables with overmolded probes — tamper-evident packaging available.

05

UL · V0 · Eco-Friendly

UL recognized, V0 flame retardant (UL 94 V0), RoHS & REACH compliant — halogen-free option for EU eco-design procurement.

06

Pure Copper · Cold-Press

Pure copper conductors crimped on a fully automatic cold-press line — 100% pull-tested, 1500 VAC withstand checked. MOQ 10 pcs.

Technical Data

Specifications

Product Code	FIN-01 · WHW-FIN-12PIN-HARNESS
Product Series	Wiring Harness — Financial Equipment
Application Field	ATMs, POS terminals, currency counters, ticket vending, self-service kiosks
Cable Family	Signal transmission · Motor drive · Sensor cable · Coaxial RF
Wire Material	Multi-core copper with multi-color insulation · shielded options
Conductor	Pure copper, cold-press stranded
Insulation Material	PVC — eco-friendly, halogen-free option available
Flame Retardant	V0 — fire & flame retardant (UL 94)
EMI Suppression	Ferrite snap-on core · braided shield · foil + drain wire (per spec)
Connector — Motor Drive	12-pin standard cash-handling motor interface
Connector — Data Link	Shielded RJ45 / Ethernet style
Connector — Sensor	JST microconnector · custom probe-side overmold

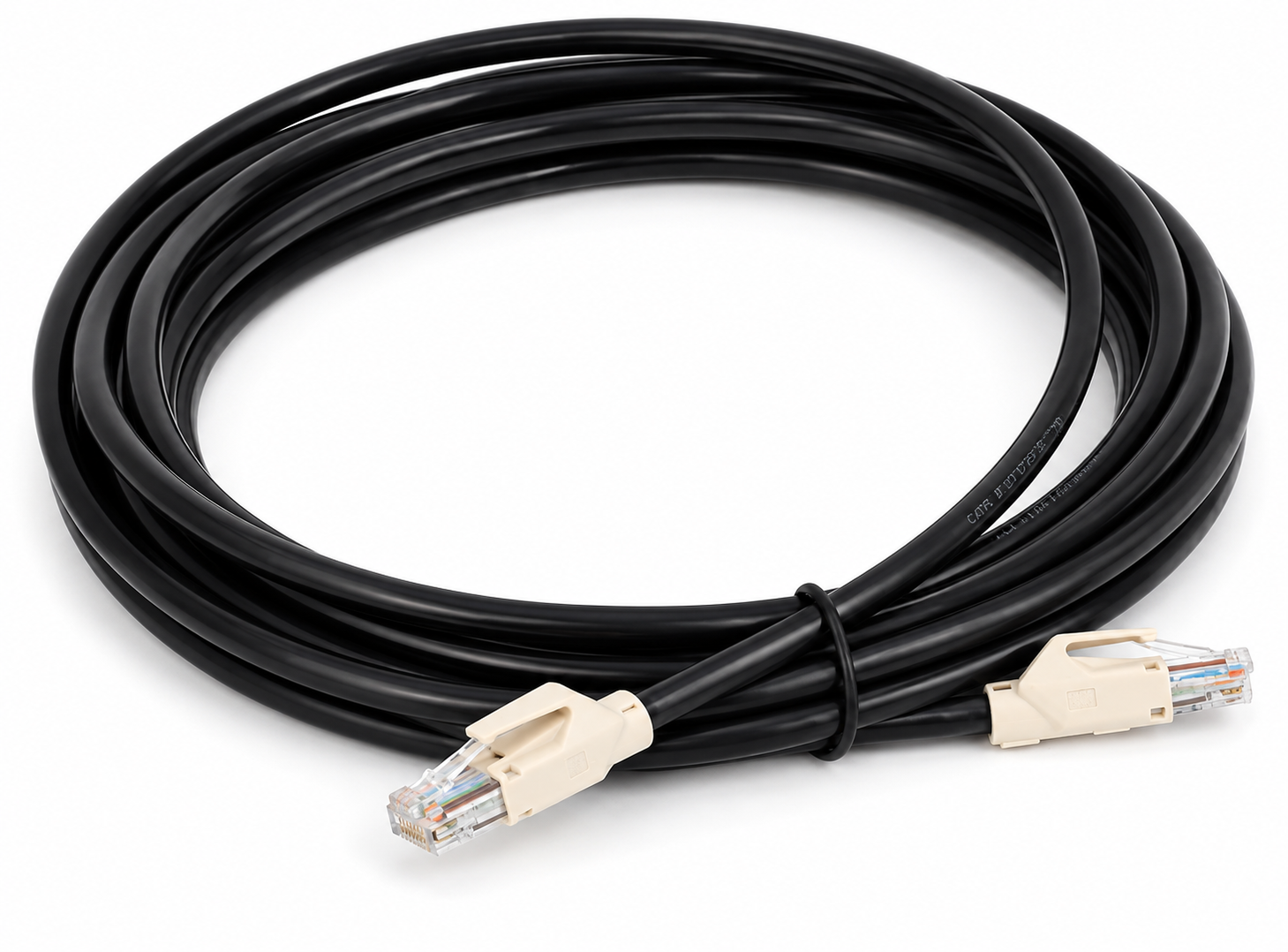

Variant A	Signal transmission cable — RJ45 / shielded data link
Variant B	Motor drive harness — 12-pin + ferrite EMI core
Variant C	Sensor cable — magnetic / inductive / proximity probe
Variant D	Coaxial RF cable — high-frequency data link
Manufacturing Process	Cold press · Fully automatic · Customized
Withstand Voltage	1500 VAC / 1 min
Cores / Pins	Fully customized to drawing
Certification	UL · V0 · RoHS · REACH (eco-friendly)
Quality System	IATF 16949 · ISO 9001
Packing Dimensions	30 × 20 × 20 cm · ~100 g per pc
Packaging Options	Anti-static bag · tamper-evident seal · SGS pre-shipment inspection
MOQ	10 pcs (prototype-friendly)
Sample Lead Time	7–10 days
Mass Production Lead Time	15–25 days after artwork approval

FAQ

Frequently Asked Questions

What variants ship from this financial-equipment harness line?

Four standard variants ship from the same product family: (A) signal transmission cable — shielded RJ45 / Ethernet-style data link for terminal-to-host communication, (B) motor drive harness with 12-pin connector and ferrite EMI core for cash-dispenser and currency-counter motors, (C) magnetic / inductive sensor cable for note-detection and security interlock probes, and (D) coaxial RF cable for high-frequency data transmission. Pin counts, wire colors, and connector types are fully customized to drawing.

Which financial machines is this harness designed for?

The harness family fits ATMs (cash dispensers, deposit machines, drive-up), POS terminals, currency counters and sorters, ticket vending machines, parking fee machines, self-service kiosks, banknote validators, coin handlers, and security-control terminals. Custom drawings for OEM and ODM fleet builders are welcome.

What is the role of the ferrite (magnetic) core and 12-pin connector?

The ferrite snap-on core suppresses high-frequency common-mode noise on power and motor lines — critical for keeping ATM RF emissions compliant with FCC Part 15 and CE EMC standards while ensuring magnetic-stripe and contactless readers operate cleanly nearby. The 12-pin connector is the de-facto standard for cash-handling motor and sensor interface modules, allowing one unified pin-out across multiple machine models.

Is the harness certified, eco-friendly, and flame retardant?

Yes. UL recognized components with V0 flame-retardant PVC insulation (UL 94 V0). Materials are RoHS and REACH compliant with halogen-free options available — meeting both EU eco-design directives and most North American procurement specs. Pure copper conductors are 100% pull-tested after cold-press crimping; a 1500 VAC / 1 minute high-voltage withstand check is run before packing.

What is the MOQ, lead time, and packaging?

MOQ from 10 pcs for prototype and pilot runs. Sample lead time is 7–10 days from drawing approval; mass production is 15–25 days. Default packing is 30 × 20 × 20 cm cartons at ~100 g per piece, individual anti-static bag for sensor and RJ45 variants. Tamper-evident sealing and SGS pre-shipment inspection available for security-sensitive shipments.

Applications

Where It's Installed

01

ATM cash dispensers

02

POS terminals

03

Currency counters & sorters

04

Ticket vending machines

05

Self-service kiosks

06

Banknote validators

07

Coin handlers & sorters
