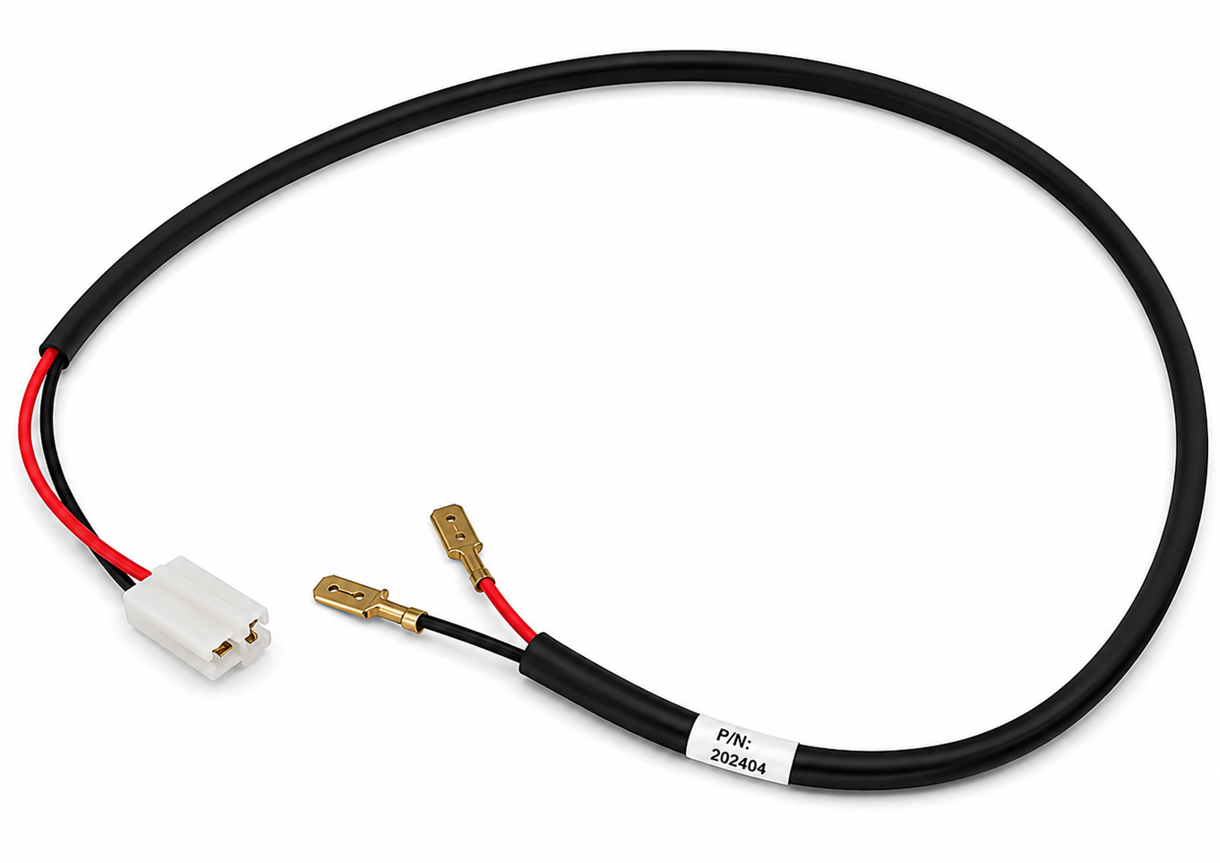

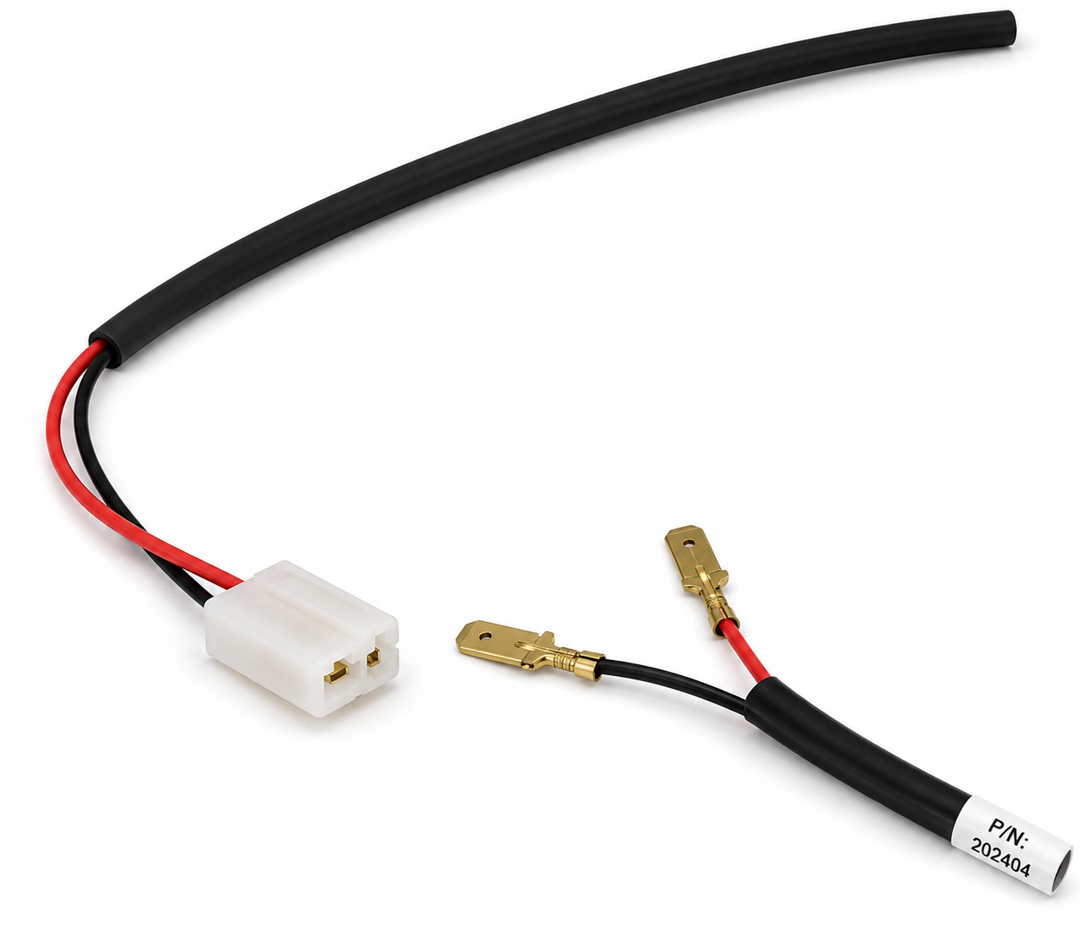

Sunroof Custom Wiring Harness for Brushed/Brushless Motors with Integrated Resistor & Protective Sleeve

Name: Sunroof Custom Wiring Harness for Brushed/Brushless Motors with Resistor and Protective Sleeve
Brand: Wire Harness Works
SKU: AUTO-06
Availability: InStock

Custom-engineered automotive harness for sunroof motor and air purification systems. Compatible with both brushed and brushless motors, supports high/low speed switching, includes integrated resistor and protective sleeve. 3C certified, fully automatic manufacturing.

Pure Copper 3C Certified Built-in Resistor Brushed & Brushless

Product Series

Automotive Safety Exit Harness

Voltage Rating

12V – 24V DC

Wire Gauge

0.35 – 2.0 mm²

Conductor

Pure Copper

Process

Cold Press · Fully Automatic

Motor Support

Brushed + Brushless · Hi/Lo Speed

Sleeving Options

Suffocation Tube or Black PVC Tube

Connector Options

AMP · JST · Sumitomo · KET

Request a Quote Chat on WhatsApp

3C Certified · Compatible with brushed & brushless motors · Hi/Lo speed control with integrated resistor · 24-hour quote response.

Product Description

Engineered for Sunroof & Air Purification Motor Systems

The Sunroof Custom Wiring Harness is a precision-engineered automotive assembly designed for sunroof motors, air purification fans, and other variable-speed motor control circuits. The harness is compatible with both brushed and brushless motor architectures and supports high/low speed switching through an integrated resistor built directly into the assembly.

Each harness uses pure copper conductors and is enclosed in a protective sleeve — available as either suffocation tube or black PVC tube — to shield against heat, abrasion, and vibration in the sunroof and headliner installation environment. The product line is 3C certified for safety and compliance in both domestic and export markets.

Manufactured in our IATF 16949 facility in Shenzhen using fully automatic cold-press terminal crimping, every assembly is dimensionally consistent and electrically tested. Customizable connector brands (AMP/JST/Sumitomo/KET), pin count, wire gauge, color coding, and total length — send your drawing for a manufacturable quote within 24 hours.

Key Features

Why OEMs Choose This Sunroof Harness

Brushed + Brushless Compatible

Single harness design works with both brushed and brushless sunroof and fan motors — simplifies inventory, reduces design complexity.

High/Low Speed Control

Integrated resistor enables two-speed motor operation without requiring an external speed controller — supports common automotive HVAC and sunroof speed switching.

Built-in Resistor & Protective Sleeve

Integrated resistor and protective sleeve eliminate field assembly steps — installs as a complete plug-and-play unit, reducing OEM line time.

3C Certified Product Line

China Compulsory Certification confirms compliance with all safety, EMC, and material standards — accepted for export to all major markets.

2 Sleeving Variants

Choose suffocation tube (heat resistant, fire safe) or black PVC tube (flexible, lightweight) depending on installation environment.

Major Brand Connectors

Genuine AMP, JST, Sumitomo, KET connectors — pre-selected and qualified for automotive interior installation requirements.

Full Specifications

Technical Parameters & Packaging Variants

Product Series	Automotive Safety Exit / Sunroof Harness Series
Application Field	Sunroof Motors, Air Purification Fans, Variable-Speed Motor Control
Manufacturing Process	Cold Press · Fully Automatic
Contact Material	Pure Copper
Wire Gauge Range	0.35 mm² – 2.0 mm²
Operating Voltage	12V – 24V DC
Operating Temperature	-40°C to +140°C
Flame Retardant Rating	Flame Retardant (V-0 equivalent)
Product Certification	3C Certified (China Compulsory Certification)
Quality System	IATF 16949, ISO 9001, RoHS, REACH
Motor Compatibility	Brushed and Brushless motors
Speed Control	High and Low Speed switching via integrated resistor
Built-in Components	Integrated Resistor + Protective Sleeve
Sleeving Variant 1	Standard Sunroof Integrated Harness w/ Suffocation Tube · AMP/JST/Sumitomo/KET connectors
Sleeving Variant 2	Standard Sunroof Integrated Harness w/ Black Plastic Tube · AMP/JST/Sumitomo/KET connectors
Compatible Connector Brands	AMP (TE Connectivity), JST, Sumitomo, KET
Packaged Dimensions	20 × 20 × 10 cm (L × W × H)
Packaged Volume	4000 cm³
Net Weight	100 g
Order Code	AUTO-06
Minimum Order Quantity	10 pieces (sample); 500+ pieces (production)
Lead Time	7 – 15 days (sample); 20 – 35 days (production)
