Electrical Terminal Adapter Cable for Air Duct & Seat Lighting Applications

Name: Electrical Terminal Adapter Cable for Air Duct & Seat Lighting with AMP/JST/Sumitomo/KET Connectors
Brand: Wire Harness Works
SKU: AUTO-05
Availability: InStock

Custom-engineered electrical terminal adapter harness for automotive air vent and seat lighting circuits. Pure copper solder wire with corrugated tube or braided tape sleeving — supports AMP, JST, Sumitomo, KET connectors, plus optional USB interface. UL certified, V-0 flame retardant.

Pure Copper UL Certified V-0 Flame Retardant IATF 16949

Product Series

Air Duct Harness w/ Corrugated Tube

Voltage Rating

12V – 24V DC

Wire Gauge

0.35 – 2.0 mm²

Conductor

Pure Copper Solder Wire

Process

Fully Automatic

Connector Options

AMP · JST · Sumitomo · KET · USB

Sleeving Options

Corrugated Tube or Braided Tape

Certification

UL Certified · IATF 16949

Request a Quote Chat on WhatsApp

UL Certified · V-0 flame retardant · AMP / JST / Sumitomo / KET / USB connector options · 24-hour quote response.

Product Description

Engineered for Automotive Air Vent & Seat Lighting Circuits

The Electrical Terminal Adapter Cable is a fully-automated, drawing-driven wiring harness designed for automotive interior lighting circuits — specifically air vent ambient lights, seat lights, and decorative LED modules. Manufactured with pure copper solder wire for maximum signal integrity and a UL Certified product line, this harness meets the toughest automotive electrical and safety standards.

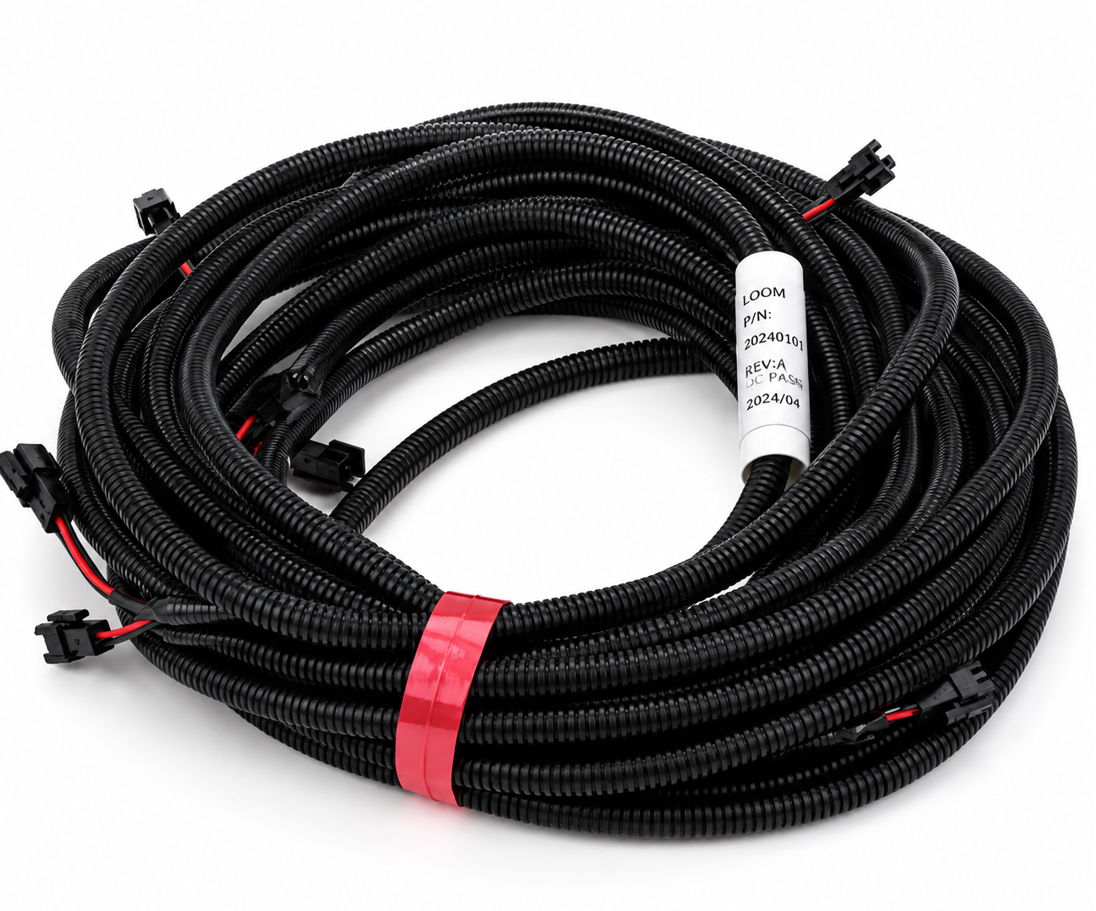

Three product configurations are available: (1) corrugated tube sleeved with AMP/JST/Sumitomo/KET connectors, (2) corrugated tube sleeved with the above connectors plus a USB interface, and (3) braided tape sleeved with AMP/JST/Sumitomo/KET connectors. The braided-tape variant offers superior flexibility for tight routing; the corrugated tube version delivers higher abrasion and impact protection.

Every harness is produced on fully automatic equipment in our IATF 16949 facility in Shenzhen — wire gauge from 0.35 to 2.0 mm², operating temperature -40°C to +140°C, UL94 V-0 flame retardant insulation. Send your drawing or sample to receive a manufacturable quote within 24 hours.

Key Features

Why OEMs Choose This Adapter Cable

Pure Copper Solder Wire

Pure copper conductors with solder-grade purity — superior conductivity, low resistance, and reliable solder joint integrity at terminal connections.

UL Certified Product Line

Officially UL recognized — provides documented compliance for export to North American and global markets where UL certification is required.

UL94 V-0 Flame Retardant

Insulation self-extinguishes within 10 seconds — meets the highest fire-safety classification used for automotive interior wiring.

3 Sleeving Configurations

Corrugated tube (high impact protection), corrugated tube + USB interface, or braided tape (maximum flexibility) — choose the right protection for your installation environment.

Major Brand Connectors

Genuine AMP (TE Connectivity), JST, Sumitomo, KET connectors — plus USB interface option for in-vehicle charging or data integration.

Fully Automatic Manufacturing

Computer-controlled cutting, stripping, crimping, and terminal insertion — eliminates manual error, delivers consistent quality batch after batch.

Full Specifications

Technical Parameters & Packaging Variants

Product Series	Air Duct Harness w/ Corrugated Tube
Application Field	Automotive Air Vent Lighting, Seat Lighting, Decorative LED Modules
Manufacturing Process	Fully Automatic (cutting / stripping / crimping / terminal insertion)
Contact Material	Pure Copper (solder-grade)
Conductor Type	Pure Copper Solder Wire
Wire Gauge Range	0.35 mm² – 2.0 mm²
Operating Voltage	12V – 24V DC
Operating Temperature	-40°C to +140°C
Flame Retardant Rating	UL94 V-0 (self-extinguishing within 10 seconds)
Product Certification	UL Certified
Quality System	IATF 16949, ISO 9001, RoHS, REACH
Sleeving Options	Corrugated Tube / Braided Tape (both available)
Connector Options	AMP (TE Connectivity), JST, Sumitomo, KET — plus optional USB interface
Variant 1 — Corrugated Tube + Connectors	30 × 20 × 20 cm · 12000 cm³ · 100 g
Variant 2 — Corrugated Tube + USB Interface	30 × 20 × 20 cm · 12000 cm³ · 100 g
Variant 3 — Braided Tape + Connectors	30 × 20 × 20 cm · 12000 cm³ · 100 g
Order Code	AUTO-05
Minimum Order Quantity	10 pieces (sample); 500+ pieces (production)
Lead Time	7 – 15 days (sample); 20 – 35 days (production)
