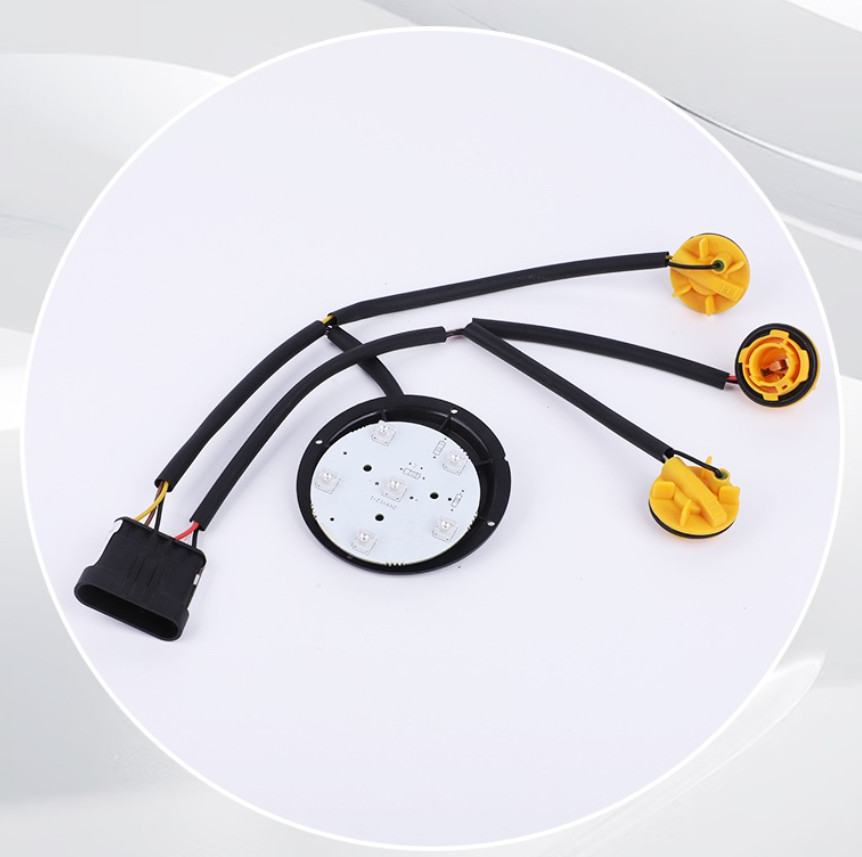

LED PCB with 3 bulb sockets and connector

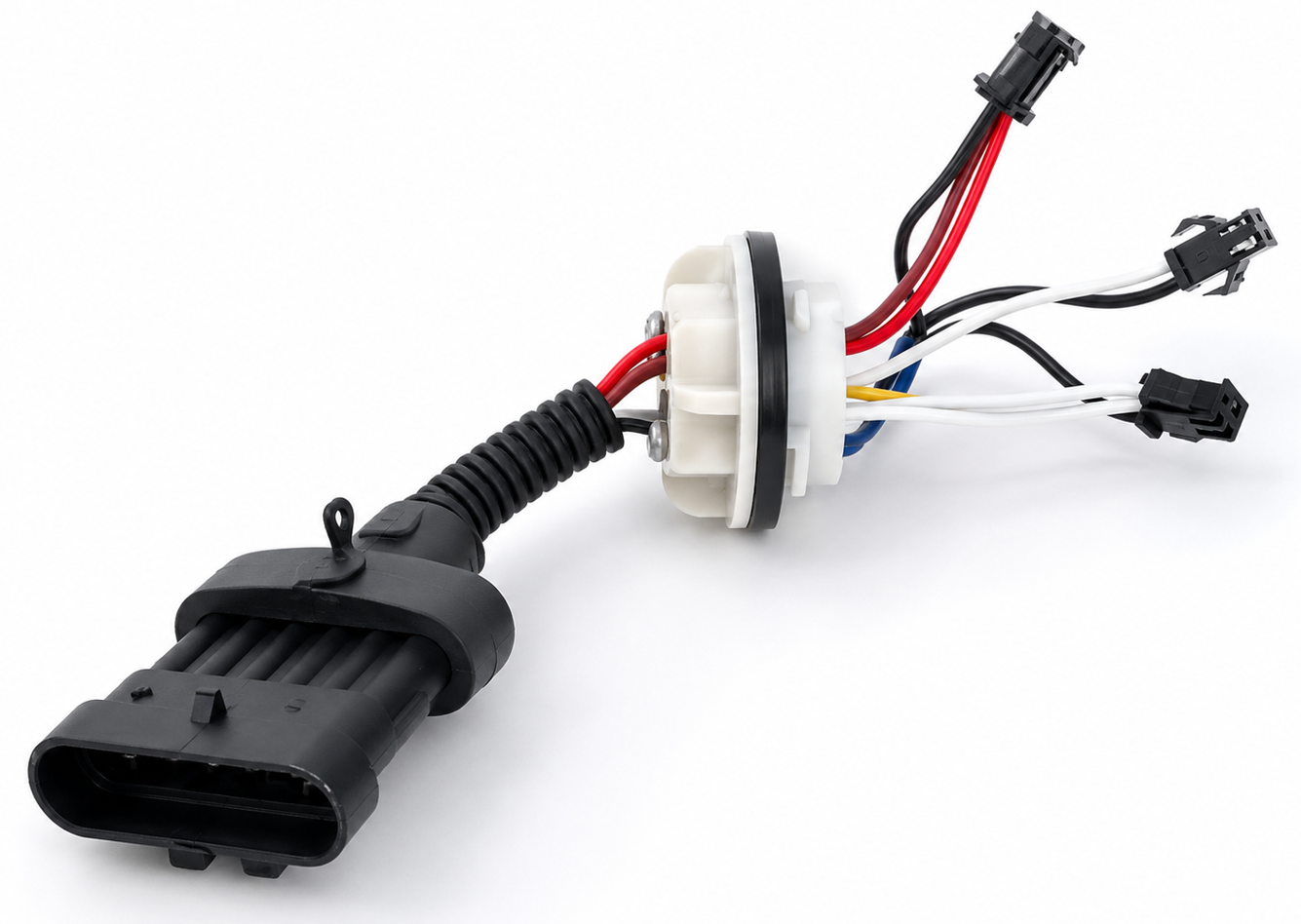

LED array module with circular LED ring assembly

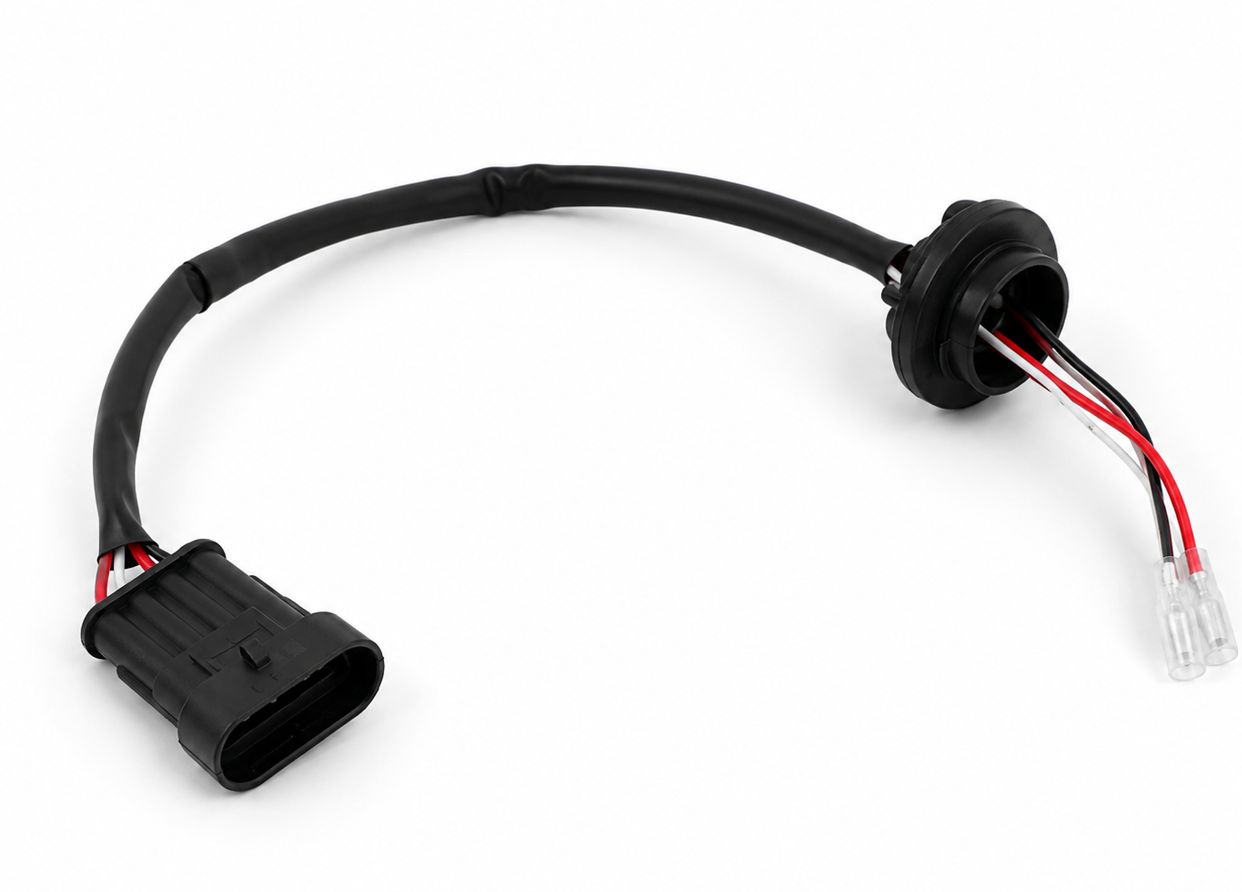

Black multi-pin connector with multi-color terminal wires

Compact direct waterproof headlight connector

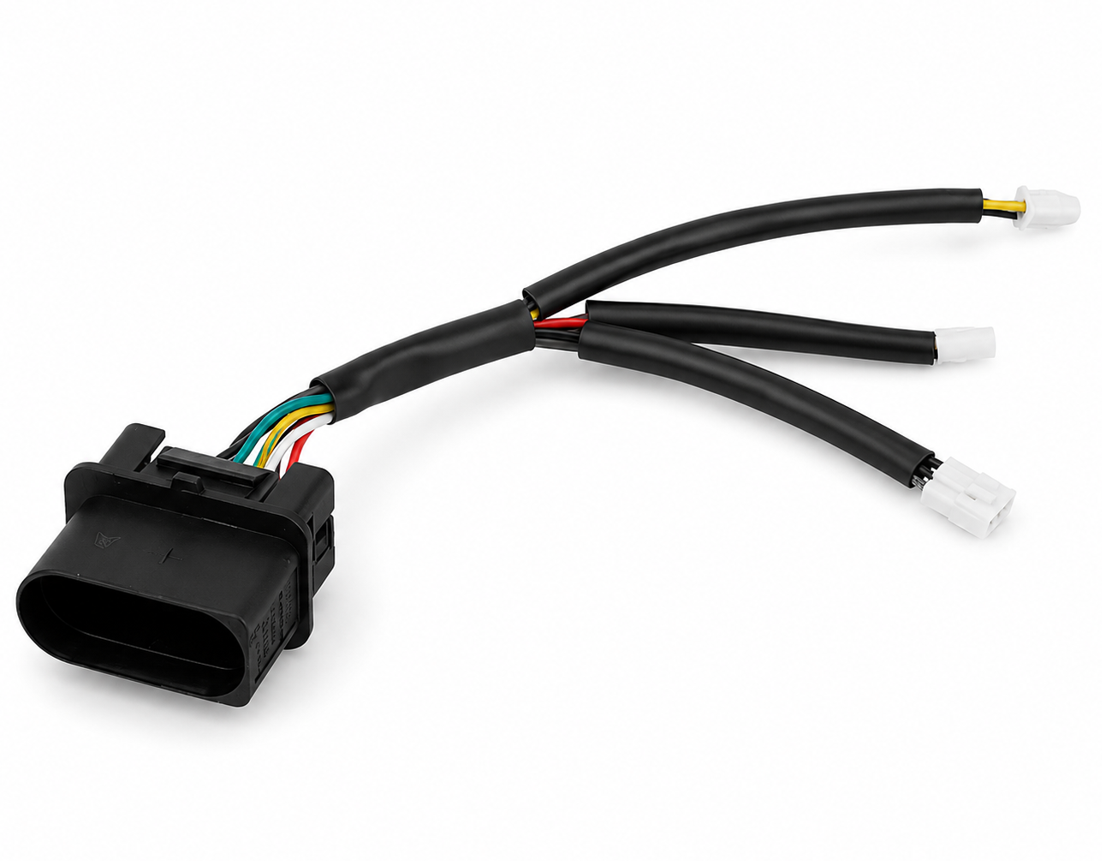

Multi-pin male connector with three branched output cables

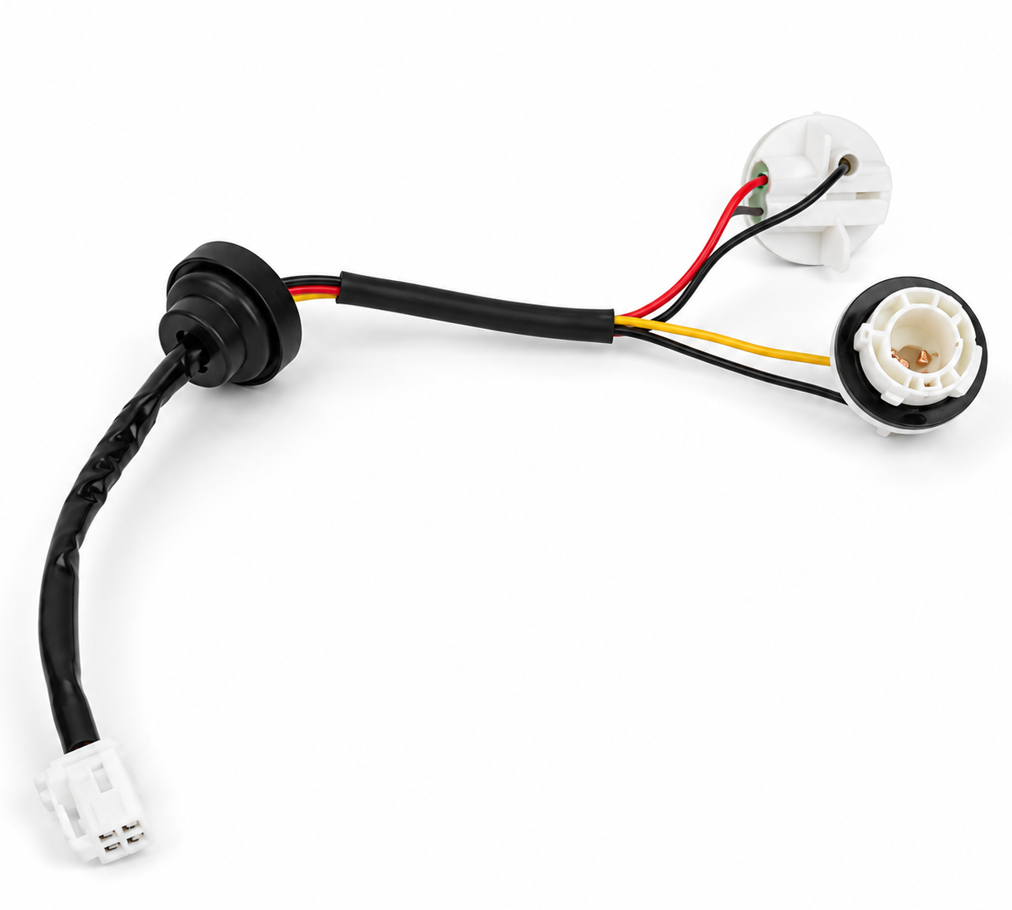

LED array harness variant with circular LED lamp

Black waterproof connector with terminal close-up

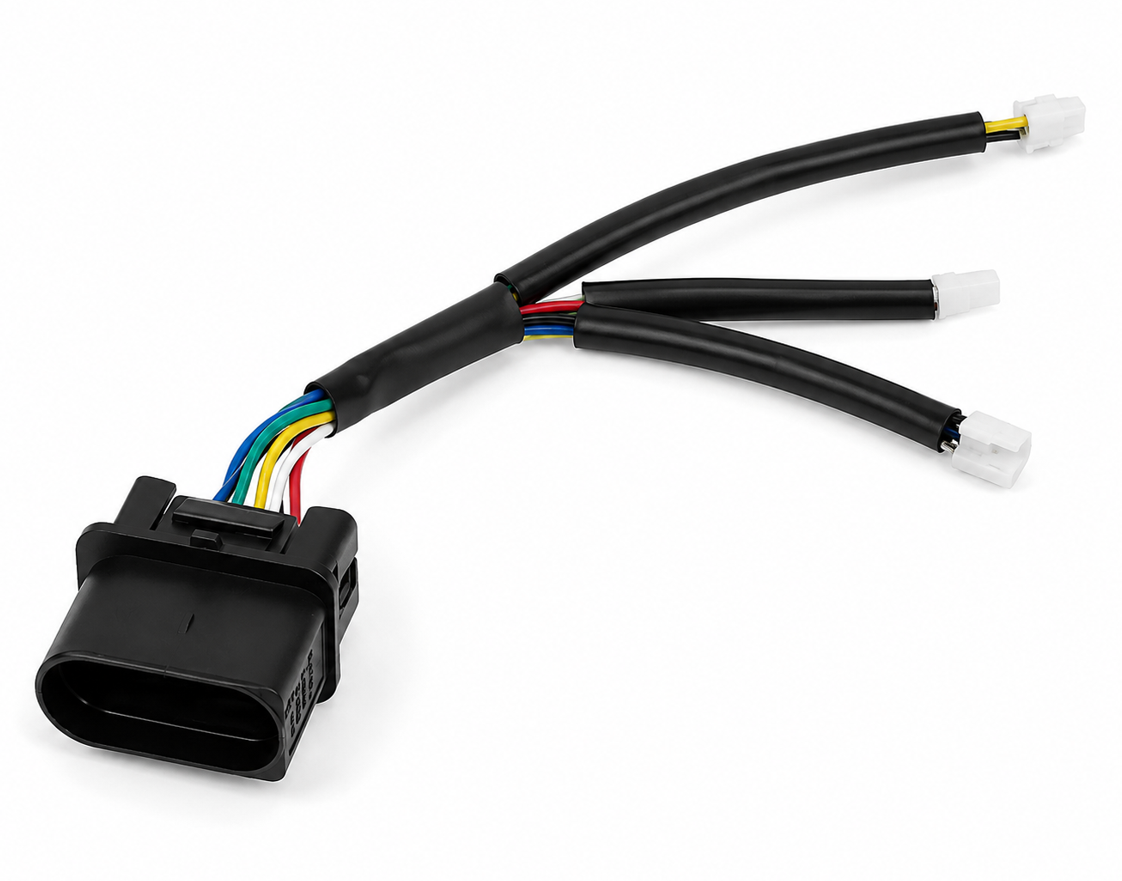

Twin bulb-socket connector pair for headlight installation

AUTO-07 · Automotive Wiring Harness

Custom Automotive Headlight & Taillight Wiring Harness Connector with LED Adapter Male/Female Terminals

Name: Custom Automotive Headlight & Taillight Wiring Harness Connector with LED Adapter Male/Female Terminals
Brand: Wire Harness Works
SKU: AUTO-07
Availability: InStock

Custom-engineered wiring harness for vehicle lighting systems — LED headlights, taillights, fog lamps, signal lamps, and new energy vehicle lighting. High-quality copper terminals with PVC insulation deliver stable low-frequency signal transmission and flame-retardant protection.

Copper Terminals Flame Retardant Male & Female OEM/ODM

Product Model

Car Light Wire Harness

Cable Length

250 mm or Customized

Working Frequency

Low Frequency

Terminal Material

Copper

Insulation

PVC, V-0 Flame Retardant

Application

Automotive & NEV Lighting

Core / Pin Count

Fully Customizable

MOQ

10 PCS (Sample) · OEM/ODM

Request a Quote Chat on WhatsApp

OEM/ODM supported · Male & Female terminal options · Works with headlights, taillights, fog lamps, LED & EV systems · 24-hour quote response.

Product Description

Custom Wire Harness for Vehicle Lighting Systems

This custom automotive wiring harness is designed for vehicle lighting systems, including LED headlights, taillights, fog lamps, signal lamps, and new energy vehicle lighting applications. Manufactured with high-quality copper terminals and durable PVC insulation, the harness provides stable low-frequency signal transmission, flame-retardant protection, and reliable electrical connectivity.

The wiring harness supports customized wire length, connector type, pin configuration, and terminal design to meet both OEM and aftermarket automotive requirements. Whether you need a male/female pair, a single direct-fit connector, or a complex multi-output assembly with branched cables, our engineering team builds to your drawing.

Suitable for: automotive LED lighting systems, headlight wiring harness, taillight connector cables, EV and new energy vehicles, car lighting adapter cables, male & female terminal connectors, and automotive electrical systems. Send your specification or sample — receive a manufacturable quote within 24 hours.

Key Features

Why OEMs Choose This Connector

Copper Terminals

High-grade copper contact terminals deliver maximum conductivity and resist oxidation — long service life under harsh under-hood and engine compartment conditions.

Flame Retardant PVC Insulation

PVC insulation rated UL94 V-0 — self-extinguishes within 10 seconds and meets automotive fire safety standards worldwide.

Male & Female Terminal Options

Both male and female terminal options available — supports complete plug-and-play installation without field crimping.

LED-Ready Adapter Design

Engineered as a true LED adapter cable — converts traditional incandescent socket signals to LED module input without voltage drop or flicker.

NEV / EV Compatible

Designed to operate in new energy vehicle (NEV) lighting circuits — meets electromagnetic compatibility and signal isolation requirements of EV platforms.

Full OEM/ODM Customization

Custom wire length, connector type, pin configuration, terminal material, and color coding — build to your drawing or sample.

Full Specifications

Technical Parameters

Product Name	Automotive Lighting Wiring Harness
Model	Car Light Wire Harness
Type	Wiring Harness / Connector Cable / Terminal Wire
Frequency	Low Frequency
Application	Automotive & New Energy Vehicles (NEV / EV)
Connector Type	Custom (per drawing)
Shape	Strip / Linear assembly
Cable Length	250 mm or Customized (50 mm – 5000 mm)
Customization	Yes — OEM/ODM Supported
Feature	Flame Retardant / Fire Resistant (UL94 V-0)
Terminal Material	Copper
Insulation Material	PVC (Polyvinyl Chloride)
Core Number	Customized (1 – 10+ cores)
Pin Number	Customized per drawing
Application Field	New Energy Vehicles, Automotive Lighting
Compatible Connector Brands	TE Connectivity (AMP), Molex, JST, Yazaki, Sumitomo, KET, JAE
Quality Certifications	IATF 16949, ISO 9001, RoHS, REACH
Order Code	AUTO-07 (08)
MOQ	10 PCS (sample); 500+ pieces (production)
OEM/ODM	Fully Supported
Lead Time	7 – 15 days (sample); 20 – 35 days (production)

Frequently Asked Questions

FAQ for OEM Buyers

Q: Can you customize the wire length?

A: Yes. Standard cable length is 250 mm, but we customize from 50 mm to 5000 mm according to your drawing or sample. Every wire gauge, color, and length is built to your specification.

Q: Do you support OEM automotive connectors?

A: Yes. We support all major brand connectors including TE Connectivity (AMP), Molex, JST, Yazaki, Sumitomo, KET, JAE. Custom mating to your existing vehicle harness is standard service.

Q: Is the harness flame retardant?

A: Yes. All wires and insulation are rated UL94 V-0 flame retardant, meaning they self-extinguish within 10 seconds. This meets automotive fire-safety standards globally.

Q: Can it be used for EV lighting systems?

A: Yes. This harness is engineered for both traditional automotive and new energy vehicle (NEV/EV) lighting systems, including LED headlights, taillights, fog lamps, and signal lamps. Compatible with high-voltage signal isolation requirements of EV platforms.

Q: What is the minimum order quantity?

A: Sample MOQ is 10 pieces. Production MOQ is 500+ pieces. OEM/ODM is fully supported with custom quote within 24 hours of receiving your drawing.
