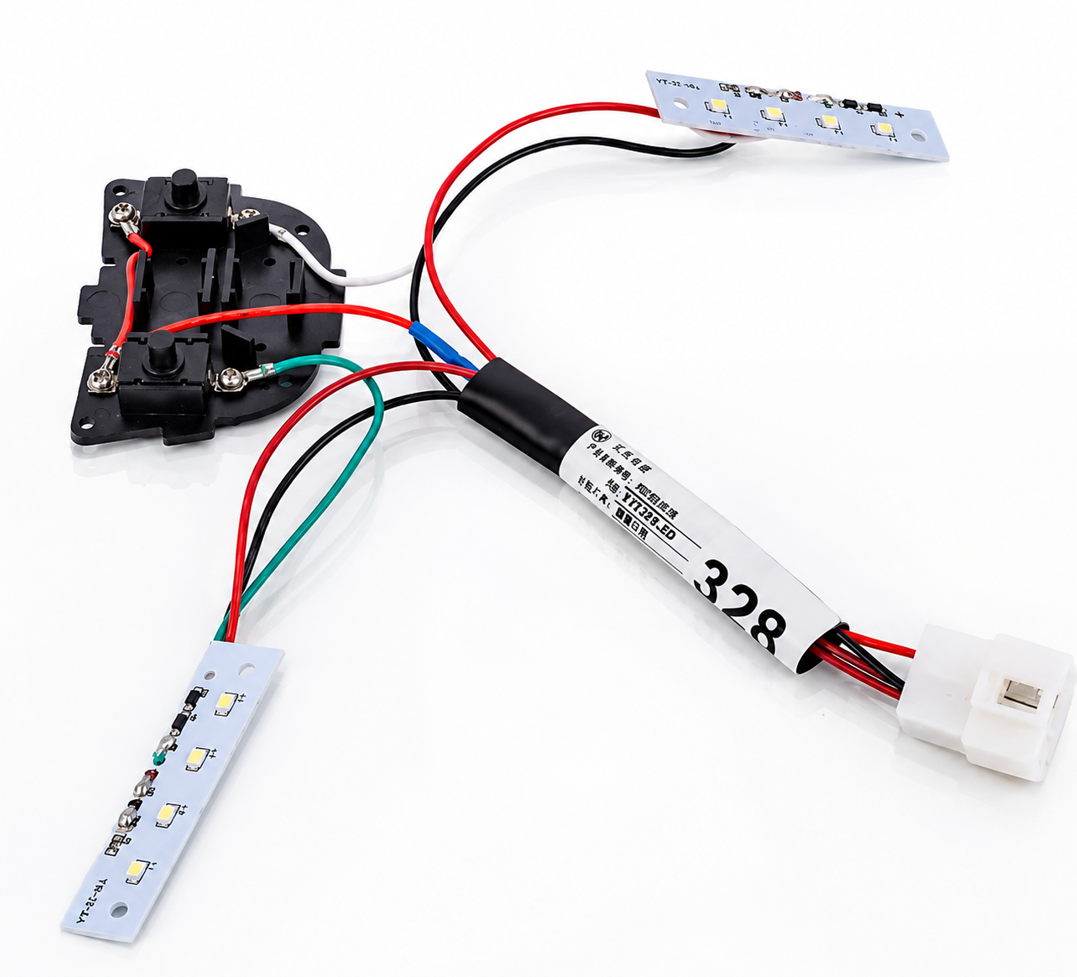

LED PCB + switch module + connector detail view

AUTO-12 · Automotive Wiring Harness

Automotive Reading Light, Air Vent LED Map Lamp Wiring Harness with Integrated STOP Function Connector

Name: Automotive Reading Light Air Vent LED Map Lamp Wiring Harness with STOP Function Integrated Connector
Brand: Wire Harness Works
SKU: AUTO-12
Availability: InStock

Custom-engineered interior lighting harness for vehicle reading lights, map lamps, and air vent ambient LED systems. Integrated STOP function safety cutoff, fully automatic cold-press manufacturing, copper terminals, V-0 flame retardant. 3C certified.

STOP Function 3C Certified V-0 Flame Retardant AMP/JST/Sumitomo

Product Series

Automotive Air Vent Wiring Harness

Application

Reading / Map Lamp / Air Vent LED

Special Function

Integrated STOP Function Control

Contact Material

Copper

Voltage Rating

12V – 24V DC

Process

Cold Press · Fully Automatic

Connector Options

AMP · JST · Sumitomo

Certification

3C · IATF 16949

Request a Quote Chat on WhatsApp

STOP function safety cutoff · For interior reading/map/air-vent lights · AMP/JST/Sumitomo compatibility · 24-hour quote response.

Product Description

Engineered for Vehicle Interior LED Lighting Systems

This automotive air vent LED reading light wiring harness is designed for vehicle interior lighting systems, featuring integrated STOP function control and stable electrical connection performance. The harness assembly supports LED map lamps, reading lights, and air vent lighting applications in passenger vehicles, commercial vehicles, and customized automotive interior systems.

Manufactured with fully automatic cold-press processing technology, the product uses high-quality copper contact materials to ensure excellent conductivity, durability, and stable signal transmission. The wiring harness is equipped with flame-retardant V-0 grade insulation components for enhanced safety and long-term reliability.

Compatible connector options include AMP, JST, Sumitomo, and customized adapter terminals to meet various automotive electrical system requirements. 3C certified, manufactured in our IATF 16949 facility in Shenzhen. Suitable for automotive reading lights, vehicle map lamps, interior ambient lighting systems, car air vent lighting, automotive wiring harness assemblies, and vehicle electrical connector systems. Send your drawing for a manufacturable quote within 24 hours.

Key Features

Why OEMs Choose This Interior Lighting Harness

Integrated STOP Function

Built-in safety cutoff automatically interrupts power on over-voltage, short circuit, or door-open signal — protects LED modules from electrical damage and extends service life.

LED Flexible PCB Compatible

Works with both rigid lamp holders and flexible LED PCB modules — adapts to slim air vent housings, overhead consoles, and decorative ambient lighting fixtures.

Fully Automatic Cold-Press

Computer-controlled production ensures consistent terminal force on every connection — eliminates manual error, delivers batch-to-batch uniformity at scale.

Major Brand Connectors

Standard support for AMP (TE Connectivity), JST, and Sumitomo connectors. Custom adapter terminals added per drawing.

V-0 Flame Retardant

UL94 V-0 grade insulation self-extinguishes within 10 seconds — meets the highest fire-safety classification for vehicle interior wiring.

3C Certified Quality

China Compulsory Certification confirms compliance with safety standards — accepted for export to all major markets. Full ISO 9001, RoHS, REACH compliance.

Full Specifications

Technical Parameters & Packaging Variants

Product Series	Automotive Air Vent Wiring Harness
Application	Reading Light / Map Lamp / Air Vent LED / Interior Ambient Lighting
Special Function	Integrated STOP Function Control
Processing Technology	Cold Press · Fully Automatic
Contact Material	Copper
Wire Gauge Range	0.35 mm² – 2.0 mm²
Operating Voltage	12V – 24V DC
Operating Temperature	-40°C to +140°C
Flame Retardant Grade	UL94 V-0 (self-extinguishing within 10 seconds)
Product Certification	3C Certified (China Compulsory Certification)
Quality System	IATF 16949, ISO 9001, RoHS, REACH
Connector Type	AMP (TE Connectivity), JST, Sumitomo
Custom Adapter Terminals	Yes — added per drawing
Customization	OEM & ODM Supported
Variant 1	LED Flexible PCB + Black Heat Shrink Tube + Switch + Heat Shrink Tube + Adapter + AMP/JST/Sumitomo Connector · 100 g
Variant 2	Lamp Holder + Black Heat Shrink Tube + Switch + Heat Shrink Tube + Adapter + AMP/JST/Sumitomo Connector · 100 g
Order Code	AUTO-12
Minimum Order Quantity	10 pieces (sample); 500+ pieces (production)
Lead Time	7 – 15 days (sample); 20 – 35 days (production)

Frequently Asked Questions

FAQ for OEM Buyers

Q: What is the STOP function in this harness?

A: The integrated STOP function is a built-in safety cutoff that automatically interrupts power to the LED reading light or air vent lamp when triggered by conditions like over-voltage, short circuit, or door-open signal. This protects the LED modules from electrical damage and extends service life — particularly important for vehicle interior lighting where switches are operated frequently.

Q: Where is this harness installed in the vehicle?

A: This harness is installed inside the vehicle cabin — typically in the overhead console (reading/map lamp), dashboard air vents (ambient LED lighting), or door panel reading lights. Compatible with passenger cars, commercial vehicles, RVs, buses, and customized automotive interior systems.

Q: What connector brands do you support?

A: We support all major brand connectors including AMP (TE Connectivity), JST, and Sumitomo as standard. Custom adapter terminals can be added per drawing. Other brands like Molex, Yazaki, KET are also available — send your existing harness sample for matching.

Q: Is this product certified?

A: Yes. This product line is 3C certified (China Compulsory Certification) with UL94 V-0 flame retardant rating — meeting safety and quality standards for both domestic and global export markets. Manufactured in our IATF 16949 facility with full ISO 9001, RoHS, and REACH compliance.

Q: What are the two packaging variants offered?

A: Variant 1: LED flexible PCB + black heat shrink tube + switch + heat shrink tube + adapter + AMP/JST/Sumitomo connector. Variant 2: Lamp holder + black heat shrink tube + switch + heat shrink tube + adapter + AMP/JST/Sumitomo connector. Both 100g, depending on whether you need flexible PCB or lamp holder mounting. Custom configurations available.
