Automotive LED module controller connector with AMP plug and bulb socket — full assembly for fog, reverse, brake, and position lights

Hover thumbnails to switch

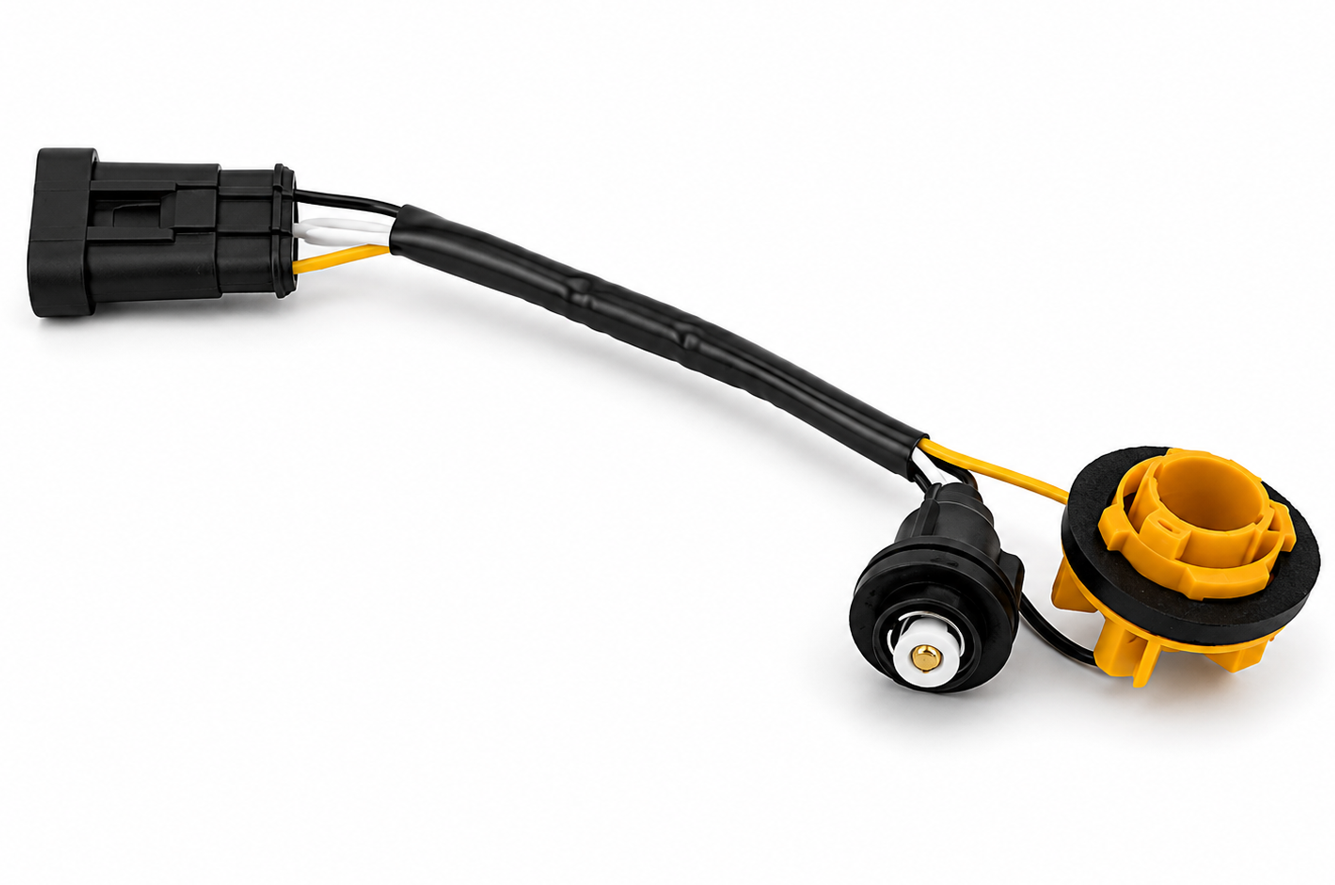

LED module connector full assembly — main view

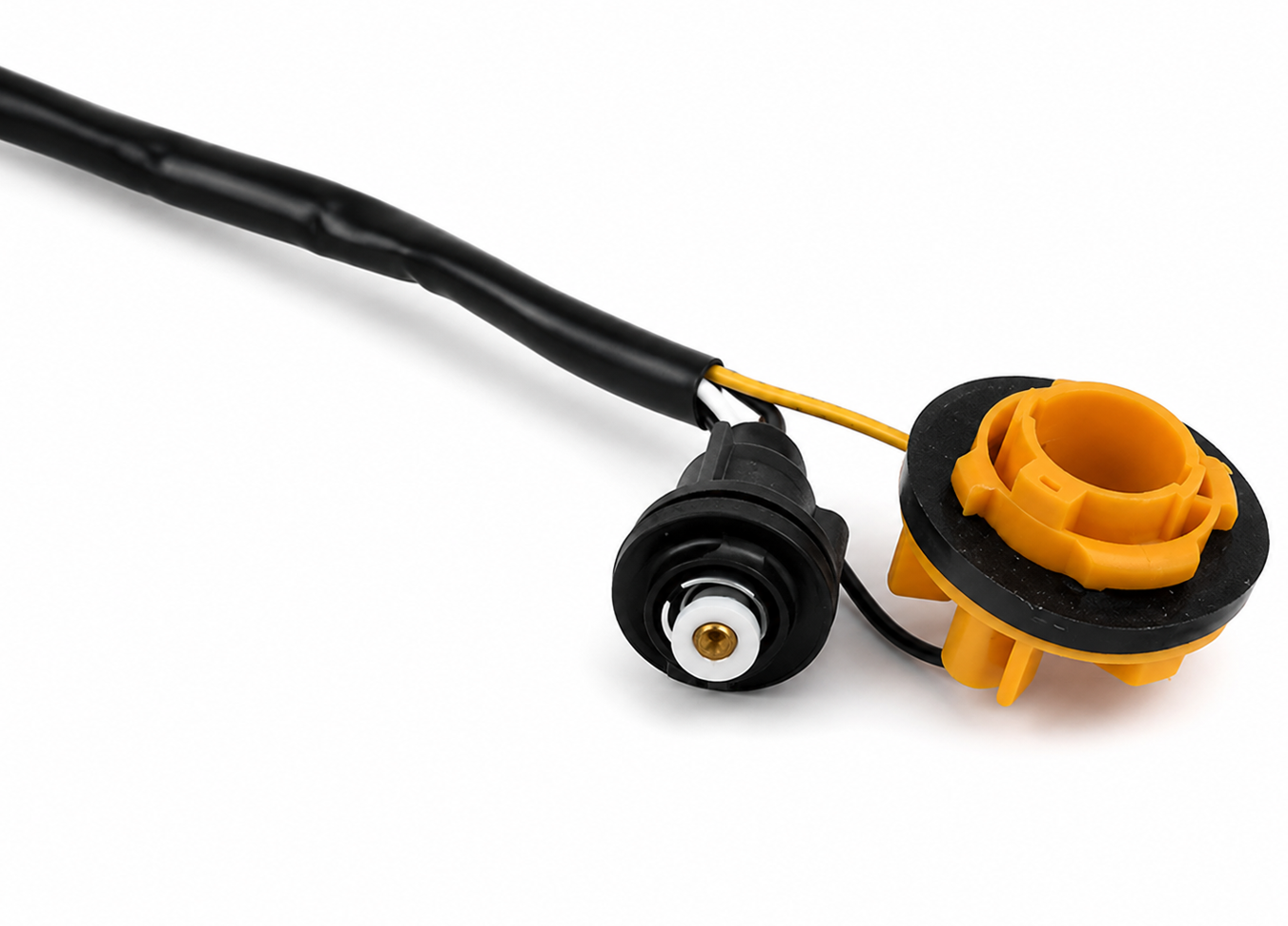

Yellow socket + small bulb socket close-up

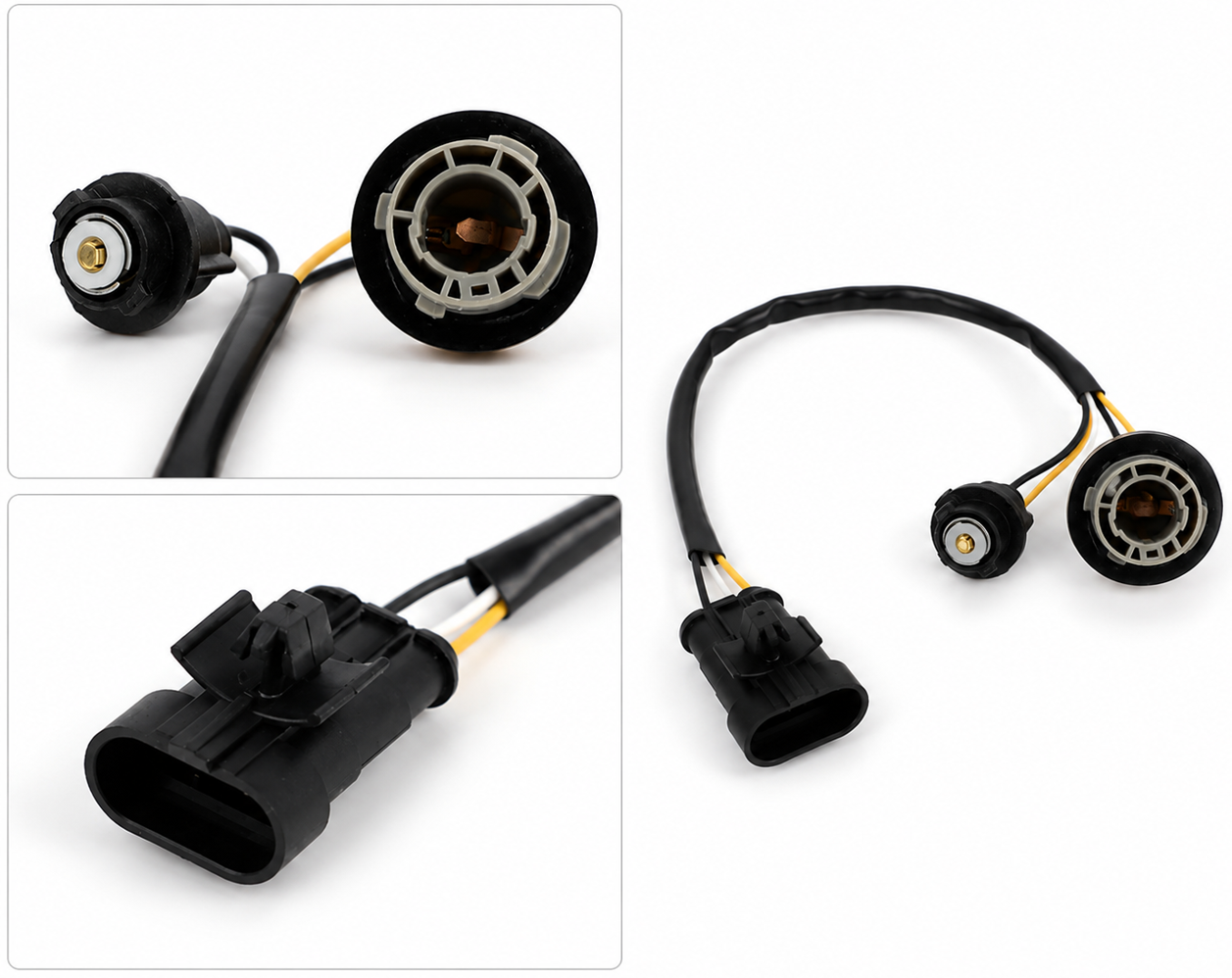

Black AMP connector with yellow bulb socket

AUTO-11 · Automotive Wiring Harness

Automotive LED Module Controller Wiring Connector Plug for Fog, Reverse, Brake & Position Lights

Name: Automotive Fog Light, Reverse, Brake & Position Light LED Module Controller Wiring Connector Plug
Brand: Wire Harness Works
SKU: AUTO-11
Availability: InStock

Custom-engineered LED module controller connector designed for the complete range of automotive tail lamp signal lights. Fully automatic production with stable signal transmission, V-0 flame-retardant protection, and AMP/JST/Sumitomo connector support. 3C certified.

Copper / PVC CCC / 3C Certified V-0 Flame Retardant AMP/JST/Sumitomo

Product Series

LED Controller Module Combo

Application

Fog / Reverse / Brake / Position

Voltage Rating

12V – 24V DC

Contact Material

Copper / PVC

Connector Options

AMP · JST · Sumitomo

Protection

Rubber Seal · Heat Shrink

Process

Custom · Fully Automatic

Certification

CCC / 3C · IATF 16949

Request a Quote Chat on WhatsApp

CCC / 3C certified · Major brand connectors AMP / JST / Sumitomo · Rubber sealing + heat shrink protection · 24-hour quote response.

Product Description

Engineered for Vehicle Tail Lamp LED Controller Systems

This automotive LED module controller connector is designed for fog lights, reverse lights, brake lights, and position light systems. Manufactured with fully automatic production technology, the connector assembly provides stable signal transmission, flame-retardant protection, and reliable electrical connectivity for automotive lighting applications.

The product supports AMP, JST, and Sumitomo connectors with optional rubber sealing sleeves, heat shrink tubing, and customized terminal configurations for OEM automotive lighting systems. The bulb socket interface delivers waterproof performance for outdoor automotive use, while copper terminals and PVC insulation ensure conductivity and fire safety.

Suitable for fog light systems, reverse light modules, brake light assemblies, position light wiring, LED controller modules, automotive tail lamp systems, and vehicle lighting upgrades. CCC / 3C certified, V-0 flame retardant, manufactured in our IATF 16949 facility in Shenzhen. Send your drawing for a manufacturable quote within 24 hours.

Key Features

Why OEMs Choose This LED Module Connector

4-in-1 Light System Support

Single connector handles fog, reverse, brake, and position light circuits — simplifies OEM inventory and reduces installation labor on the production line.

Fully Automatic Manufacturing

Computer-controlled production equipment delivers consistent terminal force on every connection — eliminates manual error and ensures batch-to-batch uniformity.

3 Major Brand Connectors

Standard support for AMP (TE Connectivity), JST, and Sumitomo connectors. Custom mating to other brands available per drawing.

CCC / 3C Certified

China Compulsory Certification confirms compliance with safety and quality standards — accepted for both domestic and export markets.

UL94 V-0 Flame Retardant

PVC insulation self-extinguishes within 10 seconds — meets the highest fire-safety classification for automotive interior wiring.

Rubber Seal + Heat Shrink

Multi-layer protection: rubber sealing waterproofs the bulb socket interface; heat shrink tubing protects cable splices from moisture and abrasion.

Full Specifications

Technical Parameters & Packaging Variants

Product Name	Automotive LED Module Connector
Product Series	LED Controller Module Connection Cable
Application	Fog / Reverse / Brake / Position Lights
Manufacturing Process	Customized · Fully Automatic
Contact Material	Copper / PVC
Wire Gauge Range	0.35 mm² – 2.0 mm²
Operating Voltage	12V – 24V DC
Operating Temperature	-40°C to +140°C
Flame Retardant Rating	UL94 V-0 (self-extinguishing within 10 seconds)
Product Certification	CCC / 3C (China Compulsory Certification)
Quality System	IATF 16949, ISO 9001, RoHS, REACH
Connector Type	AMP (TE Connectivity), JST, Sumitomo
Protection Options	Rubber Sealing Sleeve, Heat Shrink Tubing (Black)
Customization	Yes — OEM & ODM Supported
Variant 1	Lamp Holder + Rubber Seal + Heat Shrink Tube + AMP/JST/Sumitomo Connector · 100 g
Variant 2	LED Module Connector Assembly · 100 g
Order Code	AUTO-11
Minimum Order Quantity	10 pieces (sample); 500+ pieces (production)
Lead Time	7 – 15 days (sample); 20 – 35 days (production)

Frequently Asked Questions

FAQ for OEM Buyers

Q: Which lighting systems does this connector support?

A: This LED module controller connector is designed for fog lights, reverse lights, brake lights, and position lights. The connector pairs with major bulb socket interfaces used in automotive tail lamp systems — works with both incandescent retrofit and pure LED module setups.

Q: What connector brands do you support?

A: We support all major brand connectors including AMP (TE Connectivity), JST, and Sumitomo as standard. Custom mating to other brands like Molex, Yazaki, KET, JAE is also available per drawing — the connector you see in product photos is just one example variant.

Q: What protection options are available?

A: Multiple protection layers: rubber sealing sleeves for waterproofing the bulb socket interface, heat shrink tubing (black) for moisture and abrasion protection, and optional protective foam padding. All combinations available — specify per your installation environment.

Q: Is this connector certified?

A: Yes. This product line is CCC / 3C certified (China Compulsory Certification) with UL94 V-0 flame retardant rating. Manufactured in our IATF 16949 facility, with full ISO 9001, RoHS, and REACH compliance for global export markets.

Q: What is the MOQ and lead time?

A: Sample MOQ is 10 pieces with 7-15 day lead time. Production MOQ is 500+ pieces with 20-35 day lead time. OEM/ODM customization is included in our standard service.
